Electric guillotine 4,08m CGI4080-BAE CNC JOUANEL

Main informations

Product plus:

• Scissors of a new generation
• Efficiency and quality of cut
• Optimized for serial production
• Constant and powerful illumination of the cutting line using an LED integrated in the assembly device
• Highly visible cutting disc

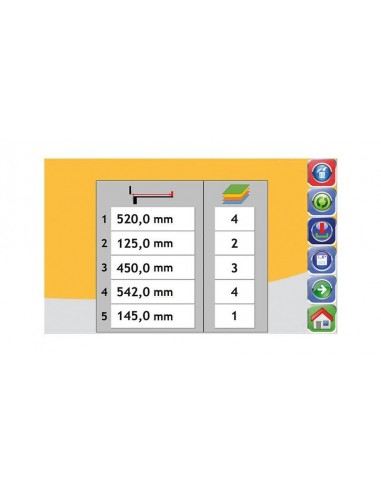

• Intuitive numerical control via a 7-inch touch screen
• Quick programming of length and quantity
• Electric rear stop with rapid movement
• Setting the width of the cut

Numerical control:

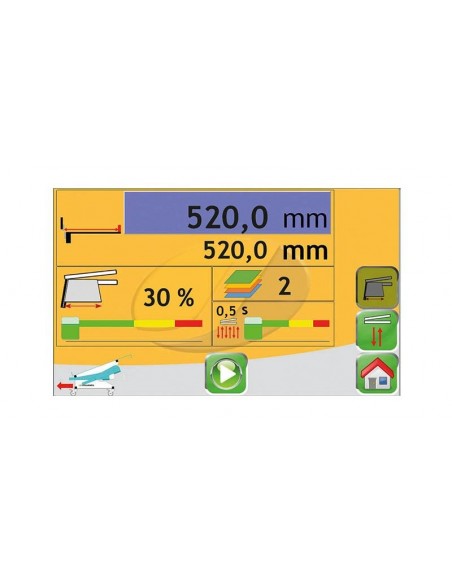

• Control on the 7-inch color touch screen
• User-friendly and intuitive programming
• Automatic menu for mass production or manual mode for individual pieces
• Adjust the cut length to increase the cutting speed
• Management of preventive maintenance of the machine
• Remote assistance

Standard equipment:

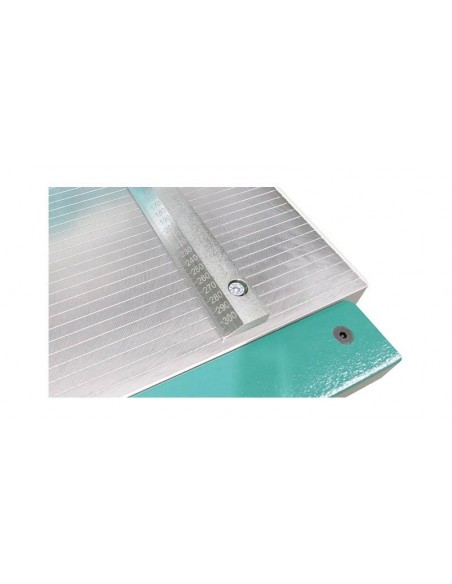

• Table 300 mm wide and 800 mm high, grooved every 10 mm for ease of cutting

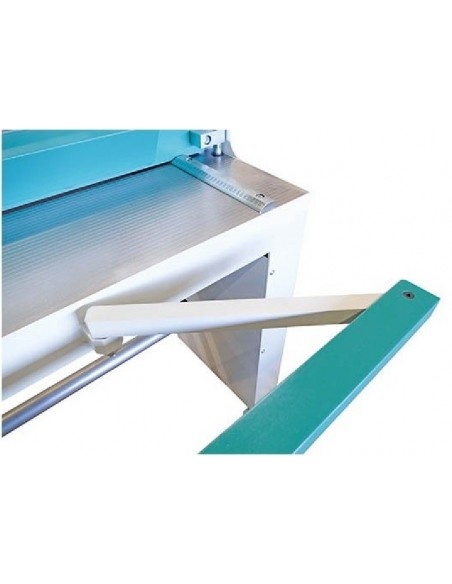

• Folding front table + 480 mm for large formats

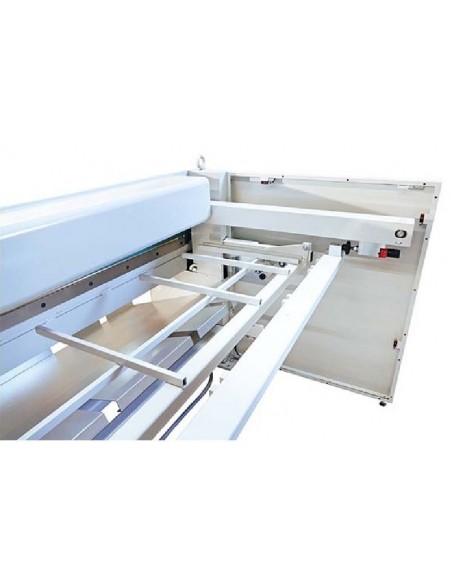

• 120 mm extendable back plate support (choice of plate)
• The spacing of the squares on the left is 500 mm and on the right is 300 mm
• Numerically driven, belt electric DC clutch from 19 to 750 mm and cone gear
• Automatic sheet metal clamping system
• Pedal control
• One-piece blades can be turned once
• Cut counter with reset
