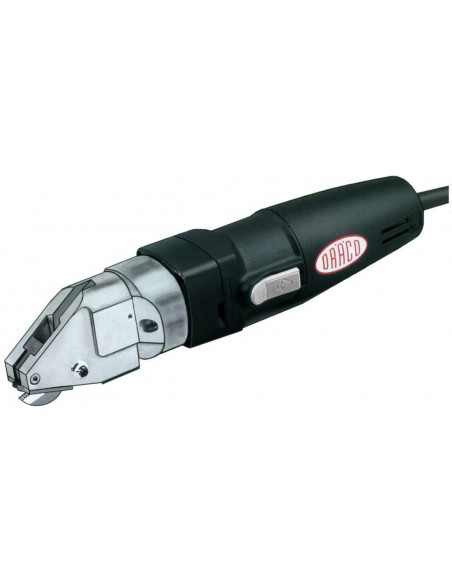

Sheet metal shears DRÄCO 3514-2

Description

An interceptor that can be used to cut through a rectangular beam. When used, you make incisions without breaking or damaging the shape of the sheet metal.  The speed of the device is 5 meters per minute.

Allows free and accurate cutting along the marked line. There is no need to modify the games. It works very fast, reaches a speed of up to 5 m / min. He cuts U, C and L profiles. Thanks to the redesigned design, it guarantees a simple and above all safe use. He works very quietly, meets the noise limit. It allows you to work with one hand. There is almost no need for maintenance, the knife and the jaws need to be pierced. Spare parts shall be standardised and interchangeable.

Video

Specifikation

• DRÄCO 3514-2 can be cut:
• - spiral pipes,
• - roofs and facades,
• - lacquered or aluminised materials,
• - tin, nails,
• - mesh and wires,
• - stainless steel,
• - non-metallic materials (aluminium, copper, zinc).

• Type: DRÄCO 3514-2
• Max. cutting capacity:
• Steel 400 N / mm2: 2,0 mm ·
• Less than 600 N / mm2: 1.5 mm
• Not less than 800 N / mm2: 1.3 mm
• Aluminium 250 N / mm2: 3.0 mm
• Narrowest radius: 200 mm
• Working speed: 5-7 m / min
• Speed: 2400 min-1
• Engine power: 500 W
• Weight: 2 kg
• Spiral piping: 400 N / mm2 4 x 0.90
• Double hem: 250 N / mm2 6 x 0.75
