Table for transverse sheet metal cutting JOUANEL CLD-LT

Main informations

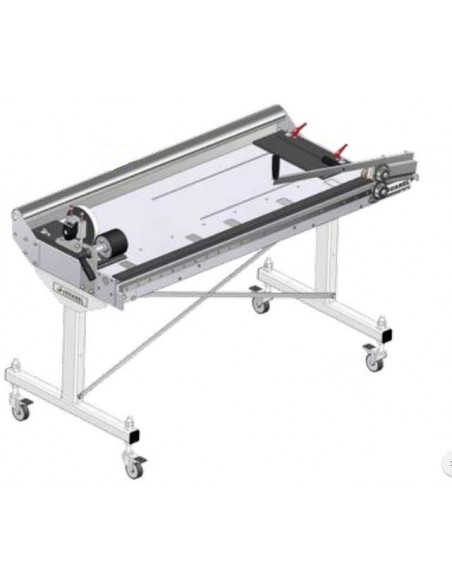

CLD-LT sheet metal cross cutting table for fast and comfortable long cuts of zinc, stainless steel or steel without deformation and without effort. It can be used in various industries, especially in tinsmithing and roofing work. These manual or electric cutting machines from the French manufacturer guarantee safe and comfortable work. Manual unwinding by pulling al. by pushing, adjustable sheet width from 500 mm to 1250 mm (1), removal by bearings (2), locking handle, protection against sheet scratches, locking in position with an eccentric wheel, sliding the sheet with a rubberized roller (4), cutting by pulling the lever (5) , construction made of hardened steel 58 HRC, comfortable handling on swivel wheels with brake (6). Max. sheet metal cutting: mild steel 0.8 mm, zinc/copper/aluminum 1.0 mm, stainless steel 0.5 mm. Unwinding: min. width 500 mm, max. width 1250 mm. Dimensions: 1610 mm x 800 mm x 1110 mm. Weight: 130 kg.

Options:

• counter with digital display 1/10 CLD-COMPTEUR (7)
• end table with the possibility of connecting other tables (1000x1250x740 mm) - max: 250 kg CLD-TAB-1M (8)
• unwinder 1000 mm (max. load 1200 kg) DVS1000
• unwinder 1200 mm ( max. load 1000 kg ) DVS1250 (9)
•
