FLITZER Seamin machine Schlebach
Information

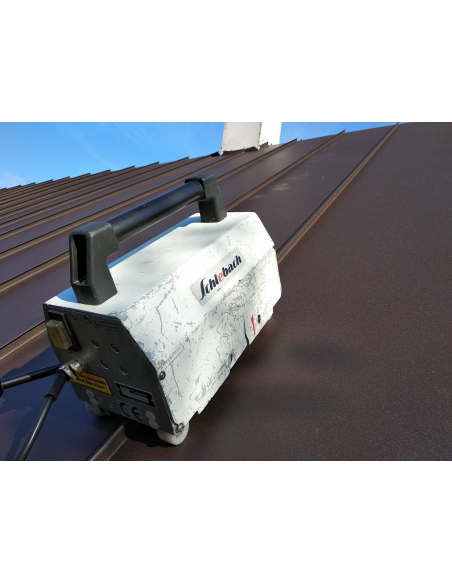

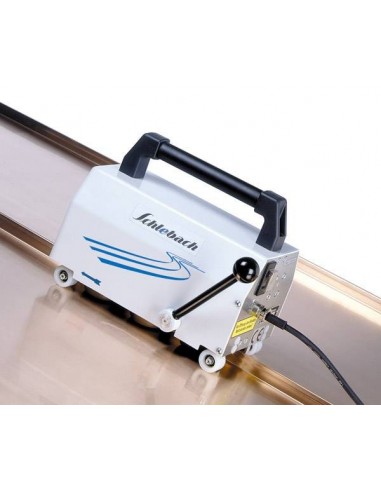

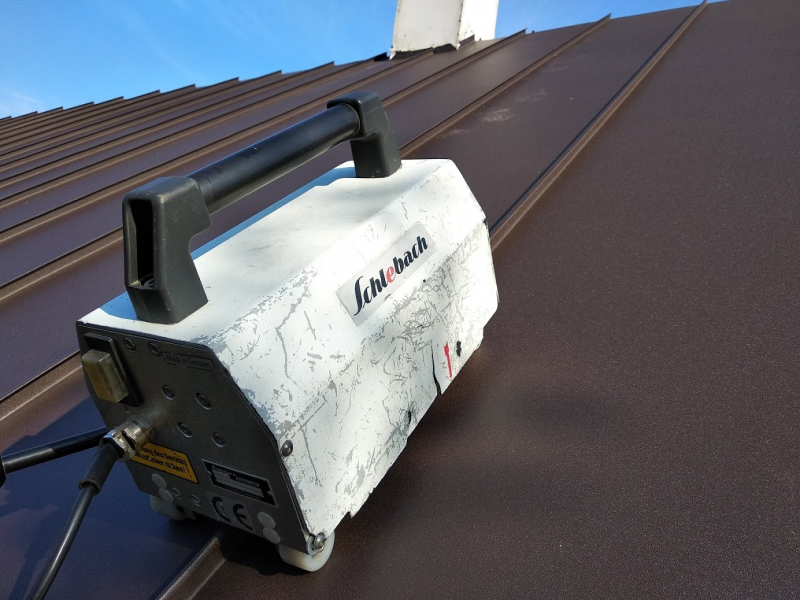

The universal seaming machine FLITZER is used to produce angular and double standing seams in a single operation, for straight profile shapes. Requirement is that the pre-profiled shapes are produced on a Schlebach profiling machine. The machine is used for a seam profile height of 25 mm
FLITZER rebate shutter, for groove height 25 mm, continuous pressure setting.
Video
Information
- for groove height 25 mm
- continuous adjustment of the pressure
- for sheet thickness 0.5 - 0.8 mm
- uncomplicated additional equipment for the production of a curved rebate
- motor 230 volts, working speed 11 m / min
- weight approx. 15 kg

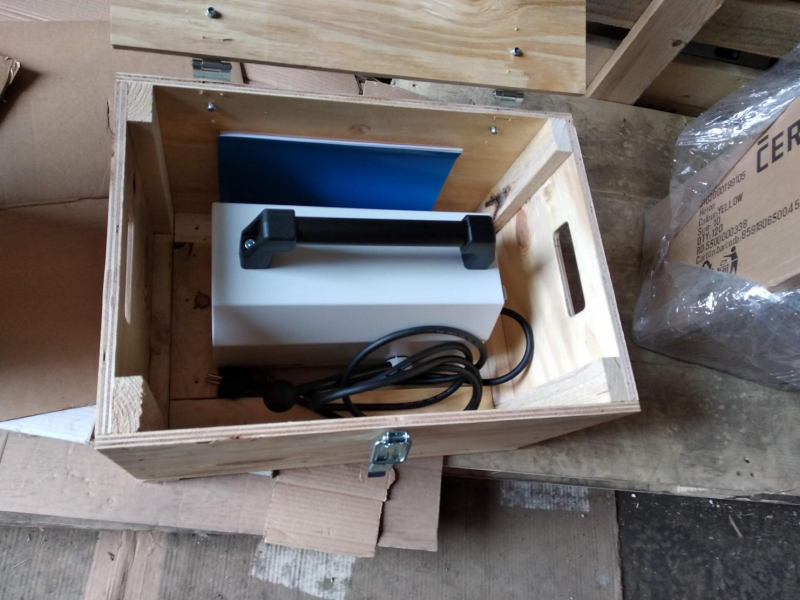

- in a wooden box
| Technical specifications: | |
| Material thickness: | Non-ferrous metals up to 0,8 mm |
| Steel sheet up to 0,7 mm | |
| Stainless steel up to 0,5 mm | |
| Working speed: | 11 m / min |
| Length: | 330 mm |
| Width: | 210 mm |
| Height | 270 mm |
Weight: |
approx 16 kg |
| Drive: | 230 V, 1-ph., 0,3 kW |
105758
