Whether you are an experienced sheet metal worker, roofer or workshop owner – choosing the right sheet metal bending machine can significantly affect your productivity, work quality and business profitability. In this review, we thoroughly tested and compared five popular sheet metal bending machine models from well-known European manufacturers.
1. Why Is Choosing the Right Bending Machine Crucial?
There are dozens of sheet metal bending machine manufacturers available on the European market today. However, not every bending machine is suitable for everything. Some are designed for mobile use on construction sites, others for workshop production and order preparation. They differ in maximum material thickness, working width, bending angle and price.

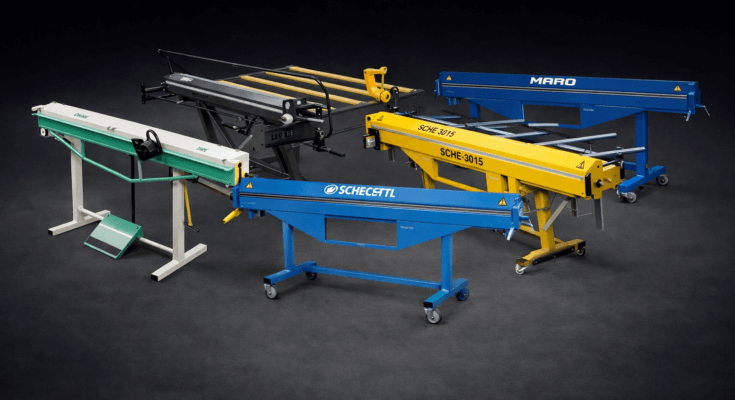

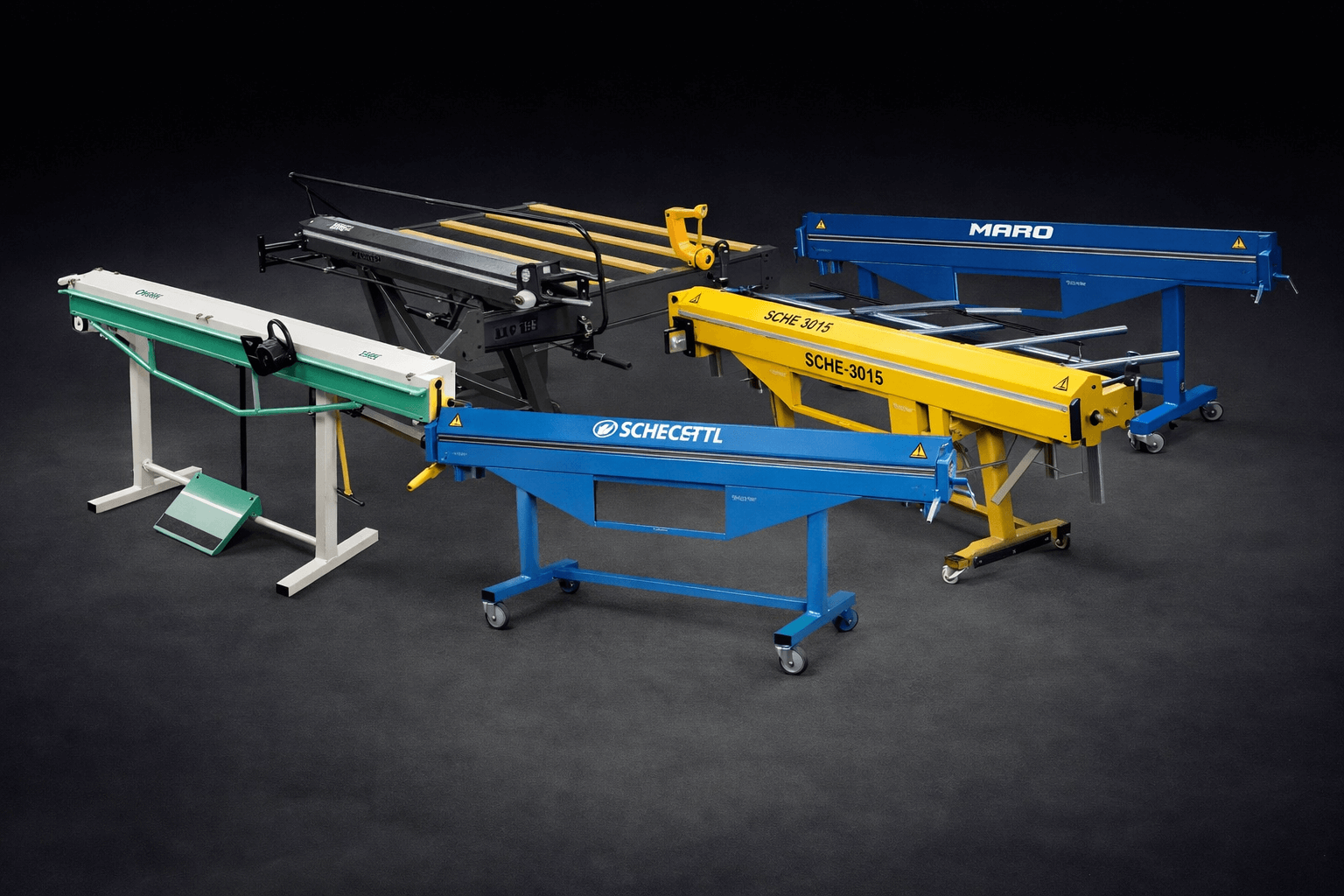

In this review, we compared five popular models in detail:
- FR JOUANEL PCX2040A – French precision
- DE SCHECHTL LBX 200 – Austrian quality standard
- PL HEIMDALL LYNX M-BL1 – innovative control
- PL SOREX Z.R.S. – Polish leader with the widest product range
- PL MAAD ZG-2000/1.2 – power at a reasonable price
Gallery
2. What and How Did We Test?
When evaluating each bending machine, we focused on the following criteria:
- Technical parameters – working width, material thickness, bending angle
- Construction and build quality – rigidity, materials, workmanship
- Ergonomics and ease of use – adjustments, controls, mobility
- Standard equipment and accessories – what is included in the price
- Price and availability – value for money, service, spare parts
JOUANEL PCX2040A – French Precision for the Construction Site and Workshop
Description:
Manufacturer: Jouanel, France
Technical Parameters of JOUANEL PCX2040A
| Parameter | Value |
|---|---|
| Working width | 2,040 mm |
| Total length | 2,260 mm |
| Width | 650 mm |
| Height | 1,040 mm |
| Weight | 160 kg |
| Max. bending angle | 155° |
| Upper beam lifting height | 70 mm |
| Bending beam width | 15 mm |
| Max. thickness – steel (400 N/mm2) | 0.8 mm |
| Max. thickness – aluminium (250 N/mm2) | 1.0 mm |
| Max. thickness – stainless steel (600 N/mm2) | 0.5 mm |
| Max. thickness – copper (300 N/mm2) | 1.0 mm |
What Impressed Us?
The JOUANEL PCX2040A stands out primarily for its exceptional maximum bending angle of up to 160° at a sheet thickness of 0.6 mm and a foot pedal for lifting the upper beam. This is a parameter rarely found in this price category. The quick eccentric clamping of the upper beam saves time during serial production, and the removable legs allow flexible adjustment of the working surface height.
A weight of 160 kg for a working width of 2,040 mm is very acceptable – the bending machine can be moved and transported to a construction site.
✅ Advantages
- Bending angle up to 160° – a unique parameter
- Bending beam lifting via foot pedal
- Low weight for such capability
- Quick eccentric clamping of the upper beam
- Suitable for construction sites and workshops
- Highest French quality and reliability
❌ Disadvantages
- Higher purchase price
- Max. steel thickness only 0.8 mm
SCHECHTL LBX 200 – The Austrian Standard of Sheet Metal Bending Machines
Description:
Manufacturer: SCHECHTL, Austria
Technical Parameters of SCHECHTL LBX 200
| Parameter | Value |
|---|---|
| Working width | 2,040 mm |
| Total length | 2,338 mm |
| Width | 650 mm |
| Height | 1,075 mm |
| Weight | 133 kg ⭐ lightest |
| Max. bending angle | 160° |
| Upper beam lifting height | 60 mm |
| Bending beam width | 15 mm |
| Max. thickness – steel (400 N/mm2) | 0.8 mm |
| Max. thickness – aluminium (250 N/mm2) | 1.0 mm |
| Max. thickness – stainless steel (600 N/mm2) | 0.5 mm |
| Max. thickness – copper (300 N/mm2) | 1.0 mm |
What Impressed Us?
The SCHECHTL LBX 200, weighing just 133 kg, is absolutely the lightest bending machine in our comparison – and that is with a comparable working width. Wheels are included as standard equipment, making it significantly easier to move around the construction site. The construction is exceptionally rigid and precise – typical Austrian precision visible in every detail. The bending machine is particularly optimised for working with titanium-zinc, aluminium and copper – materials that are becoming increasingly popular in sheet metal work today.
✅ Advantages
- Lowest weight in the comparison (133 kg)
- Wheels included in the base price
- Austrian top quality – market standard
- Optimised for non-ferrous metals (aluminium, copper)
- Excellent rigidity and construction precision
❌ Disadvantages
- Highest price in the comparison
- Max. steel thickness only 0.63 mm – lowest in the test
- Blade not included in the base price
HEIMDALL LYNX M-BL1 – A Revolution in Single-Operator Work
Description:
Manufacturer: Heimdall, Węgorzewo, Poland
HEIMDALL – a modern Polish brand that has proposed a truly innovative approach to sheet metal bending machines and has simultaneously become a bestseller among sheet metal workshop bending machines. The LYNX M-BL1 model – known in Poland as “Ryś” (Lynx) – is positioned as a bestseller and at the same time as the first bending machine on the Polish market that can be operated by a single operator.
Technical Parameters of HEIMDALL LYNX M-BL1
| Parameter | Value |
|---|---|
| Working width | 2,190 mm ⭐ largest |
| Actual bending length | 2,100 mm |
| Cutting length | 2,000 mm |
| Total length | 2,430 mm |
| Width | 800 mm |
| Height | 1,210 mm |
| Weight | 165 kg |
| Max. bending angle | 140° |
| Upper beam lifting height | 60 mm |
| Bending beam width | 15 mm |
| Max. thickness – steel (400 N/mm2) | 0.8 mm |
| Max. thickness – aluminium (250 N/mm2) | 1.0 mm |
| Max. thickness – stainless steel (600 N/mm2) | 0.5 mm |
| Max. thickness – copper (300 N/mm2) | 1.0 mm |
What Impressed Us?
The main innovation of the HEIMDALL LYNX M-BL1 is a special mechanism for opening and closing the upper beam, which allows the bending machine to be operated from any position along its length. This reduces working time by 30%. The second major advantage is the rich standard equipment: angle gauge, rear table, blade, front supports, beam and carrying handles. Compared to the competition – this represents exceptional value. The accessory labelling is also interesting: AngleLock™ – four-point bending angle support for repeatable adjustments, TrueCut™ – precise dimensions for front supports, neodymium magnets – for holding sheet metal during single-operator work, wheels – for quick and safe movement.
✅ Advantages
- Single-operator use – a unique market feature
- Richest standard equipment
- Largest working width in the comparison (2,190 mm)
- Innovative accessories (AngleLock™, TrueCut™, magnets)
- Bestseller – confirmed market success
- Attractive price
❌ Disadvantages
- Max. steel thickness only 0.8 mm
- Longer delivery time due to high demand
- Relatively new brand – shorter market history
SOREX ZRS-216L – The Polish Leader with the Widest Product Range on the Market
Manufacturer: SOREX Przeorek, Poland
Technical Parameters of ZRS-216L
| Parameter | Value |
|---|---|
| Working width | 2,190 mm |
| Actual bending length | 2,100 mm |
| Cutting length | 2,000 mm |
| Total length | 2,500 mm |
| Width | 800 mm |
| Height | 1,100 mm |
| Weight | 200 kg |
| Max. bending angle | 140° |
| Upper beam lifting height | 60 mm |
| Bending beam width | 15 mm |
| Max. thickness – steel (400 N/mm2) | 0.8 mm |
| Max. thickness – aluminium (250 N/mm2) | 1.5 mm |
| Max. thickness – stainless steel (600 N/mm2) | 0.65 mm |
| Max. thickness – copper (300 N/mm2) | 1.25 mm |
What Impressed Us?
An economical and ergonomic bending machine with good performance.
✅ Advantages
- Widest range of models and configurations on the market
- Large selection of add-ons and accessories
- Choice of light or heavy version
- Good value for money
- Polish manufacturer – fast service and parts availability
❌ Disadvantages
- Blade and wheels not included in the base price
- Technical parameters vary significantly depending on the model
- Larger and heavier models are significantly more expensive
Who do we recommend the SOREX Z.R.S. for? Companies looking for flexibility and the ability to choose exactly the bending machine that suits their specific needs – from small workshops to sheet metal production. Also ideal for those who want to gradually add accessories to their bending machine.
MAAD ZG-2000/1.2 – An Affordable Sheet Metal Bending Machine
Description:
Manufacturer: MAAD (Poland)
MAAD ZG-2000/1.2 – an ideal workshop bending machine with a stable construction and high-quality working components. It stands out primarily for its maximum sheet bending thickness of 1.2 mm. High-quality working components ensure high precision of work.
Technical Parameters of MAAD ZG-2000/1.2
| Parameter | Value |
|---|---|
| Working width | 2,150 mm |
| Total length | 2,430 mm |
| Width | 800 mm |
| Height | 1,210 mm |
| Weight | 250 kg |
| Max. bending angle | 135° |
| Upper beam lifting height | 60 mm |
| Bending beam width | 20 mm |
| Max. thickness – steel (400 N/mm2) | 1.2 mm |
| Max. thickness – aluminium (250 N/mm2) | 1.0 mm |
| Max. thickness – stainless steel (600 N/mm2) | 0.5 mm |
| Max. thickness – copper (300 N/mm2) | 1.0 mm |
What Impressed Us?
A very good combination of quality bending machine characteristics and a good price.
✅ Advantages
- Highest maximum sheet thickness (1.2 mm) – category winner
- Lowest price in the comparison
- Solid and stable workshop construction
- Excellent value for money
❌ Disadvantages
- Heaviest weight (250 kg) – limited mobility
- Max. bending angle only 130° – lowest in the test
- Blade not included in the equipment
- Wheels not included in the price
- Less suitable for field conditions
Who do we recommend the MAAD ZG-2000/1.2 for? Workshops and manufacturing companies that need to bend thicker sheet metal and are looking for a powerful bending machine at a reasonable price. Not ideal for frequent relocation due to its weight.
Overall Comparison Table – Sorted by Test Results
| Feature | 🥇 🇫🇷 JOUANEL PCX2040A |
🥈 🦁 HEIMDALL LYNX M-BL1 |
🥉 🇦🇹 SCHECHTL LBX 200 |
4️⃣ 🔨 MAAD ZG-2000/1.2 |
5️⃣ 💪 SOREX Z.R.S 2160 |
|---|---|---|---|---|---|
| Overall Ranking | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐½ | ⭐⭐⭐⭐ | ⭐⭐⭐½ | ⭐⭐⭐ |
| Country of manufacture | France | Poland | Austria | Poland | Poland |
| Device type | Construction bending machine | Mobile bending machine | Mobile bending machine | Workshop bending machine | Stationary |
| Working width | 2,040 mm | 2,100 mm | 2,040 mm | 2,150 mm | 2,150 mm |
| Max. thickness – steel (400 N/mm²) | 0.8 mm | 0.8 mm | 1.0 mm | 1.2 mm 🏆 | 0.8 mm |
| Max. thickness – aluminium (250 N/mm²) | 1.0 mm | 1.0 mm | 1.0 mm | N/A | 1.5 mm |
| Max. thickness – stainless steel (600 N/mm²) | 0.5 mm | 0.5 mm | 0.5 mm | 0.5 mm | 0.65 mm |
| Max. thickness – copper (300 N/mm²) | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm | 1.25 mm |
| Max. bending angle | 160° 🏆 | 140° | 155° | 135° | 140° |
| Upper beam lifting height | 70 mm | 60 mm | N/A | N/A | N/A |
| Bending beam width | 15 mm | 15 mm | 15 mm | 20 mm | 20 mm |
| Weight | 160 kg | 165 kg | 133 kg 🏆 | 250 kg | 200 kg |
🏆 Final Recommendations – Sorted by Test Results
| Place | Device | Overall Rating | Main Advantages | Main Disadvantages |
|---|---|---|---|---|
| 🥇 1st place | 🇫🇷 JOUANEL PCX2040A | ⭐⭐⭐⭐⭐ | Best bending angle (160°), French quality, quick eccentric clamping, available in SK, best value for money | Steel max. 0.8 mm |
| 🥈 2nd place | 🦁 HEIMDALL LYNX M-BL1 | ⭐⭐⭐⭐½ | Bestseller, single-operator use, blade + table + angle gauge included, proven quality, suitable for most materials | Smaller clearance (60 mm), wheels at extra cost, import from PL |
| 🥉 3rd place | 🇦🇹 SCHECHTL LBX 200 | ⭐⭐⭐⭐ | Lightest (133 kg), Austrian top quality, steel/copper/titanium-zinc, service and maintenance in SK | Highest price, some parameters not specified |
| 4th place | 🔨 MAAD ZG-2000/1.2 | ⭐⭐⭐½ | Greatest sheet thickness (1.2 mm), excellent customer ratings (4.7/5 / 192 reviews), attractive price | Heavy weight (250 kg), non-mobile, limited angle (130°) |
| 5th place | 💪 SOREX Z.R.S 2160 | ⭐⭐⭐ | Absolutely greatest power, for special and complex orders, wide range of accessories | — |
